Still Life Series - Focus Stacking
Derek Smith • 25 March 2020
Focus Peaking
Photo By: Derek Smith
f/2.8
Photo By: Derek Smith
f/22
Photo By: Derek Smith

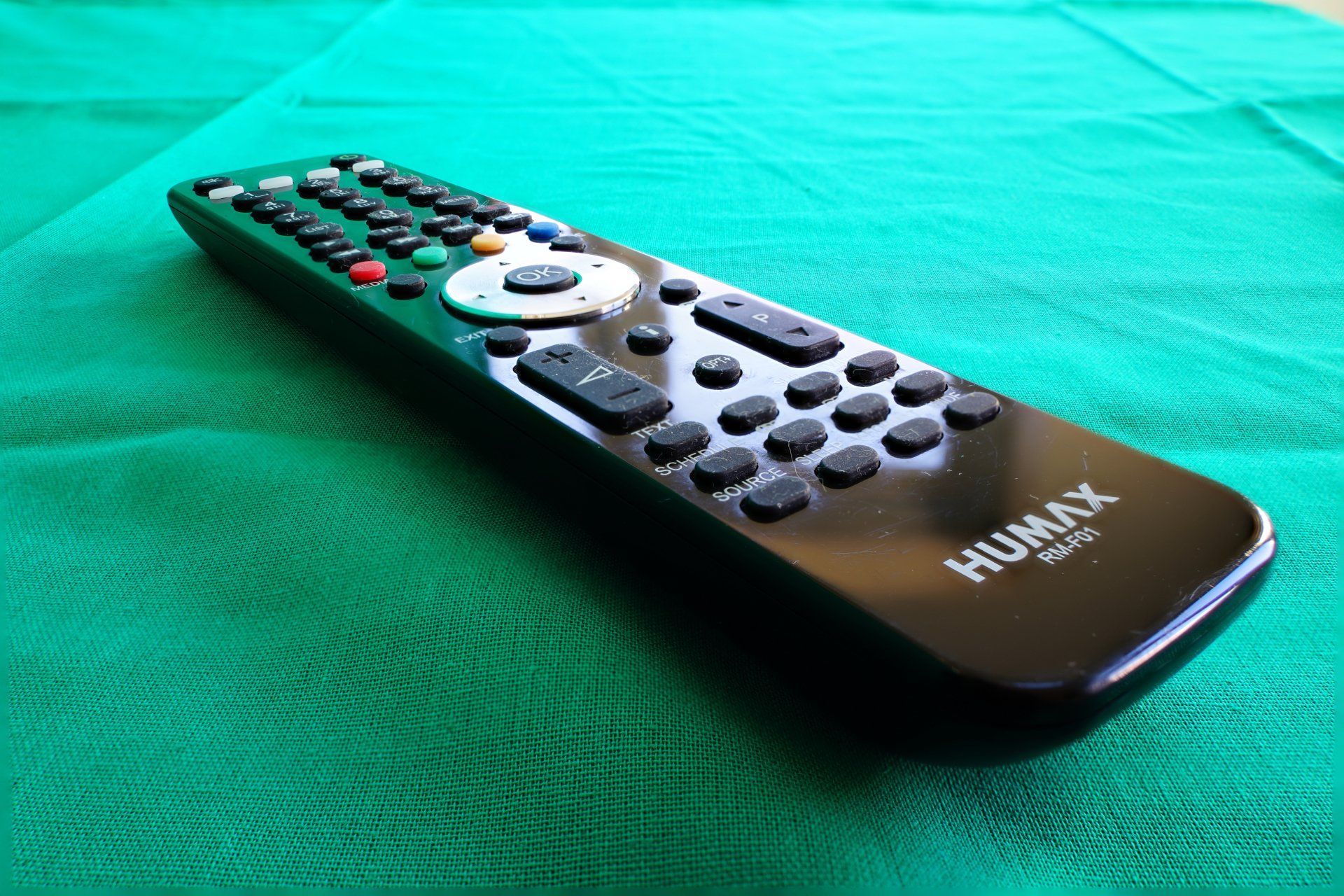

Stacked Image
Photo by: Derek Smith
Still Life Series - Stacked Images
Good evening to all of our readers, we hope that everyone is keeping safe and well during these strange times that we now find ourselves living in.
Tonight's meeting should have been a practical evening working with our cameras to practice "Still Life" photography, as all of our meetings are cancelled until further notice I'm creating this online series discussing different aspects of this genre of photography.
Choosing the correct lens aperture can be more difficult with still life photography than any other, for example in portraiture choose a fairly fast aperture f/1.8 - f/4 focus on the eyes, and the image should look good. For landscape photography stop the aperture down to f/8 - f/16 either use a hyperfocusing distance, or focus on the distant hills, and again the image has a good chance of being sharp from the foreground to the background. However, when photographing objects close up the depth of field falls away the closer to the object the camera is. I've taken one image of a TV remote control at f/2.8, and the depth of field is very shallow, the image at f/22 is still not usable.
For still life photography if the depth of field is too shallow, then a technique called "focus stacking" may well be the answer. The aperture to use is a mid range optimum aperture which will vary with camera, lens, and sensor size. Apertures in the range of f/5.6 (micro four thirds) to f/14 (full frame) should provide a good sharpness, front to back of the object to be photographed.
For this technique to work the camera should be mounted on a tripod, set the camera to Manual control, and manual focus with focus peaking turned on. My settings on the Sony A7II, with the Tamron 28-75mm lens were 1/8 shutter, f/8 aperture, 100 ISO and the lens at a 28mm focal length. Take a series of photographs focusing at one point on the object,take the shot then move the focus point, taking care not to move the camera, taking a photo each time until the whole object has been photographed. In my case I had 7 .jpg images, the images were loaded into my photo editor, which for me is Serif's Affinity, and from the File menu choose "focus merge", load the images taken, click ok, and watch the magic happen as each image is blended together to create a single sharp focused image from front to back.
I will post two more in this series, "Using Flash", and "Scenes", take care out there, and enjoy your hobby.
